Product Details:
Payment & Shipping Terms:
|
AC/DC POWER ADAPTER SPECIFICATION SHEET

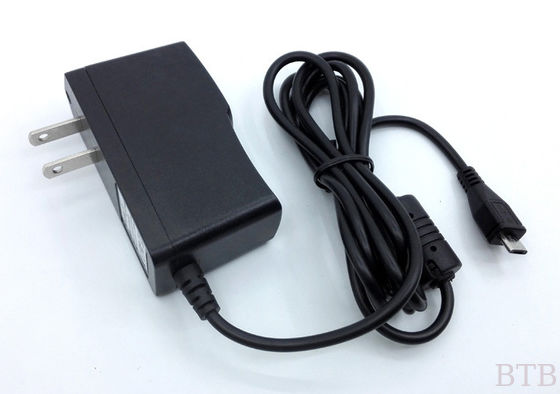

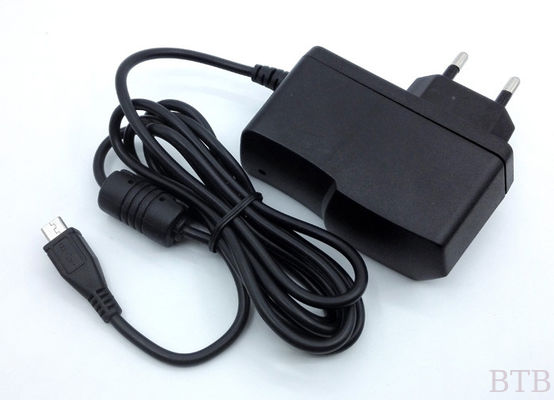

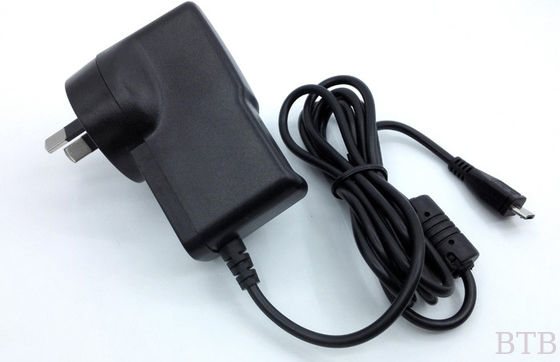

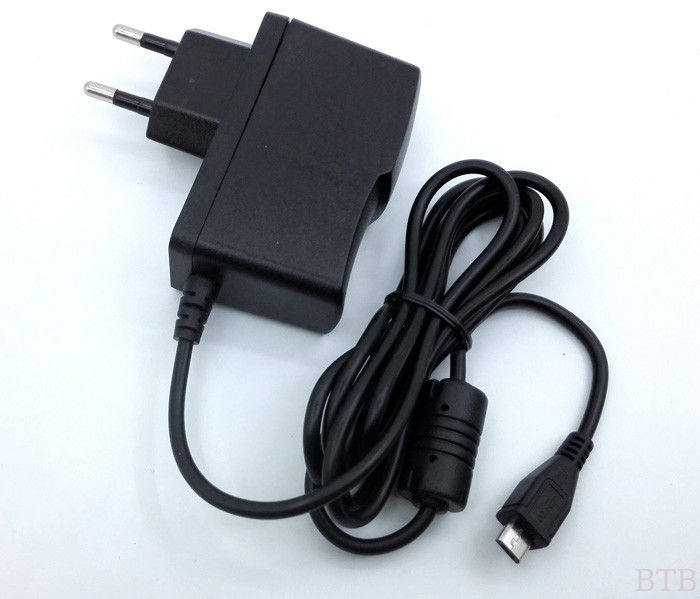

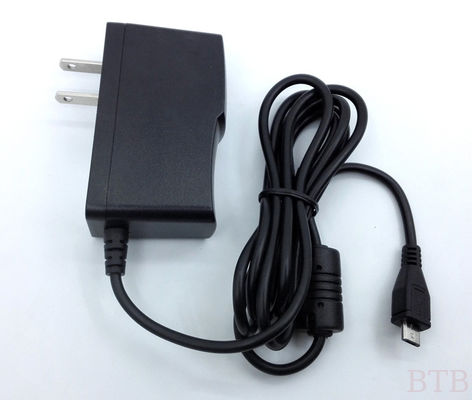

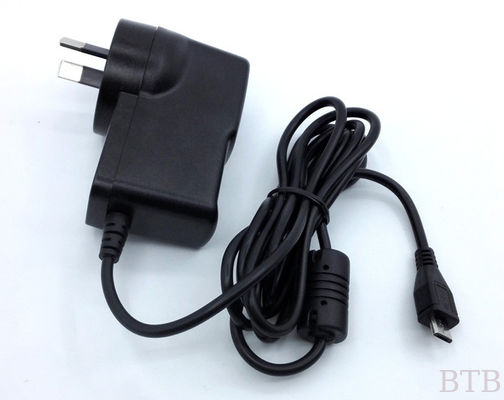

US EU UK AU wall plug interchangeable universal power adapter
| INPUT | VOLTAGE RANGE | 90 - 264VAC |
| FREQUENCY RANGE | 47~63Hz | |
| Standby Power | 0.21W max | |
| EFFICIENCY | ErP 3.0 / CEC VI | |
| AC INPUT CURRENT | 3A max at 230VAC at full load | |
| INRUSH CURRENT | Peak inrush current shall be limited to 30A within 10ms at 264Vac(Cold Start). | |
| OUTPUT | DC VOLTAGE (Range) | 18.5V-20.5V,19V-21V,22.8V-25.2V |
| VOLTAGE RANGE | ±5% | |
| LOAD CURRENT(Range) | 0 -3,300mA; 0 -3,900mA; 0 -4,100mA; 0 -4,610mA; 0 -4,700mA; 0 -3,250mA; 0 -3,500mA; 0 -4,500mA; 0 -1,000mA; 0 -2,500mA; |
|
| RANGE POWER | 24W 60W 65W 70W 80W 90W | |
| VOLTAGE TOLERANCE | ±5% | |
| LINE REGULATION | ±1% | |
| LOAD REGULATION | ±5% | |
| PROTECTION | Over-Current Protection | 1-10A Max OCP Method :Auto recovery |
| Over Voltage Protection | 25-30V Max | |
| Short Circuit Protection | 5W Max Auto recovery. | |
| SAFETY &ELECTROMAGNETIC COMPATIBILITY | SAFETY APPROVAL | UL/CUL/CB/FCC/CE/GS/BS/SAA /CCC/PSE/KC/C_Tick |
| EMI | UL60950-1. CSA22.2. TUV EN60950-1 | |
| OTHER | MTBF | 5000H min,MIL-HDBK-217F(25℃) |
| PACKAGING | PE bag+white box or color box+paper carton; or Customized comply with international sea/air shipping standards | |
| CONNECTOR | PLUG | 5.5mm x 2.1mm 5.5mm x 2.5mm 4.0mm x 1.7mm Or Customized |
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
