Product Details:
Payment & Shipping Terms:
|
| Warranty: | 3 Years | Delivery Time: | 7-10days |
|---|---|---|---|
| Sample Time: | 3-5days | Payment Terms: | T/t L/c Paypal West Union |
| Packing: | OEM OR White Box | Trad Terms: | FOB Shenzhen |

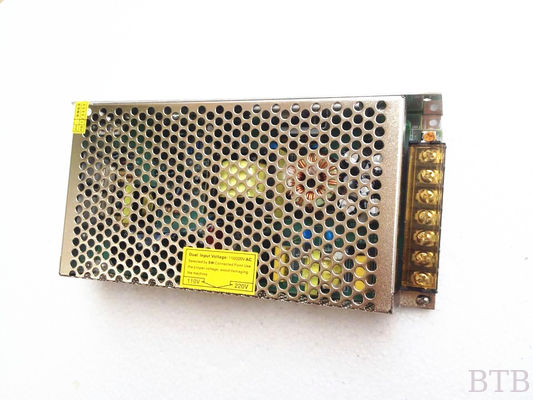

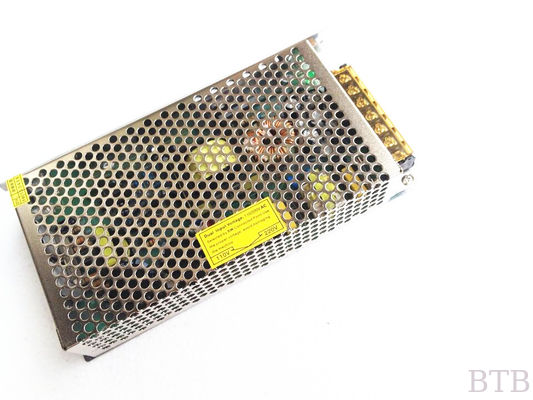

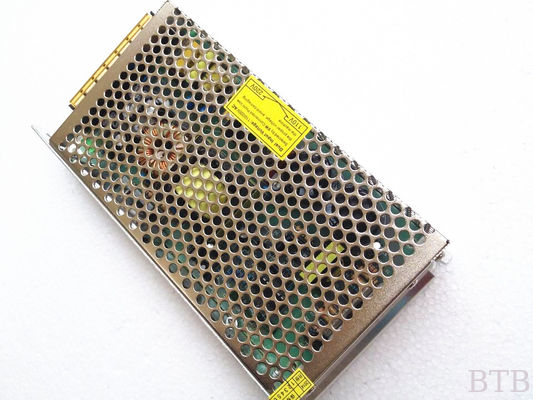

12v 8.3a 100w 110V/220V ac/dc Switching Power Supply CCTV power supply with CE ROHS approved
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications
| MODEL | S-100-5 | S-100-7.5 | S-100-12 | S-100-15 | S-100-24 | S-100-48 | |
| OUTPUT | DC VOLTAGE | 5V | 7.5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 20A | 13.6A | 8.5A | 6.7A | 4.5A | 2A | |
| CURRENT RANGE | 0 ~ 20A | 0 ~ 13.6A | 0 ~ 8.5A | 0 ~ 6.7A | 0 ~ 4.5A | 0 ~ 2A | |
| RATED POWER | 100W | 102W | 102W | 100.5W | 108W | 96W | |
| RIPPLE & NOISE (max) | 80 mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 6.75 ~ 8.25V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | |
| SETUP, RISE, HOLD TIME | 200ms, 80ms, 20ms at full load | ||||||
| INPUT | VOLTAGE RANGE | 85 ~ 132VAC/180 ~ 264VAC selected by switch 255 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY | 78% | 80% | 81% | 81% | 84% | 84% | |
| AC CURRENT | 2.4A/115VAC 1.2A/230VAC | ||||||
| INRUSH CURRENT (max) | COLD START 30A/115VAC 60A/230VAC | ||||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power (150 ~ 200% rated output power for S-100-7.5 only) | |||||
| Protection type : Shut down o/p voltage, re-power on to recover. | |||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to output load derating curve) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C ,10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/ (0 ~ 50) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||||
| EMI CONDUCTION & RADIATION | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | ||||||
| OTHERS | MTBF | 322.4K hrs min. MIL-HDBK-217F (25) | |||||
| DIMENSION | 199*98*38mm (L*W*H) | ||||||
| PACKING | 0.6Kg; 30pcs/18.8Kg | ||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | ||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||||
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
