Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Voltage: | 42V |
|---|---|---|---|
| Warrenty: | 3years | Certificate: | CE FCC ROHS UL |

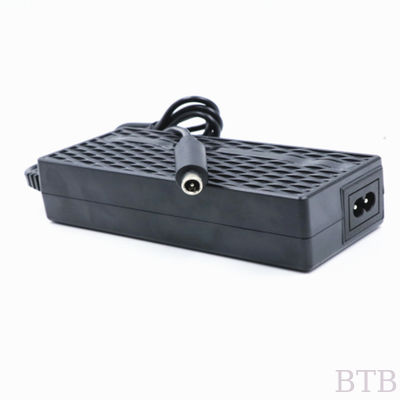

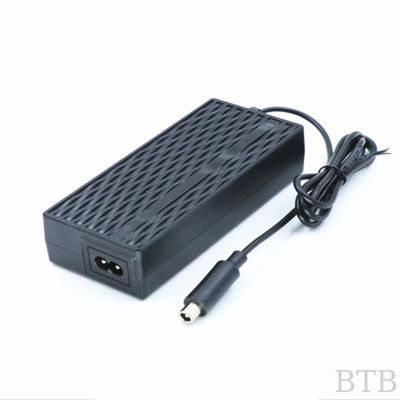

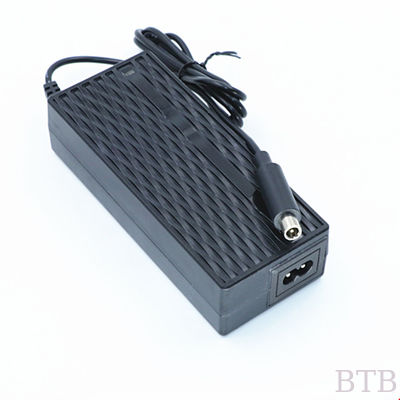

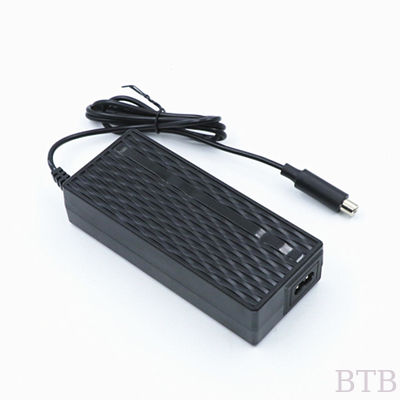

For segway charger 42V 2A Charger mijia m365 scooter charger
Skype :beryl18
Phone :+8613412619588
Wechat:beryl18
| Input | 100-240vac |
| Input Rated Voltage | 86Vac~264Vac |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | less than 0.5A |
| Input Inrush Current | less than 50A |
| Efficiency | 80%(MIN)at Rated Voltage |
| Leakage Current | less than 5mA |
| Standby power | less than 0.5w |
| DC connector | 5.5*2.1*10mm (optional) |
| DC cable | 1.2m 2464UL 22AWG cable (optional) |
| Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
| Turn On Delay Time | less than 3S (AC:110V and full load) |
| Certificates | SAA KC/KCC CB CE EMI EMC LVD GS UL/CUL FCC ROHS |
| Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
| Safety protection | output voltage protection (150%-180% rated output current) |
| output current protection (150%-180% rated output current) | |
| short current protection | |
| Operating Temperature | 0°C - +55°C |
| Storage Temperature | -20°C - +85°C |
| Safety Standard | EN60950-1 UL60950-1 ESD (EN61000 3-3) |
| CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
| AN/NZS CISPR 22:2006 |
