110 - 240v AC 24V 5W adaptor in-line on/off switch

China 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier
110 - 240v AC 24V 5W adaptor in-line on/off switch supplier 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier 110 - 240v AC 24V 5W adaptor in-line on/off switch supplier

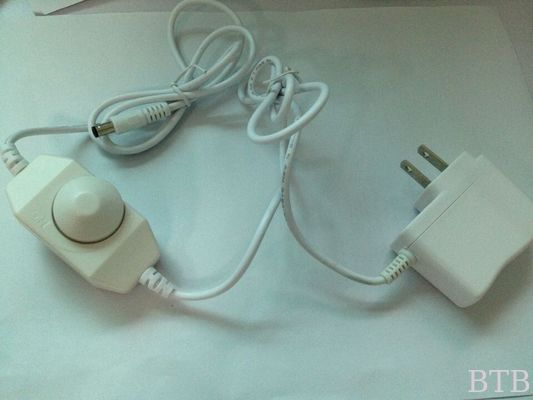

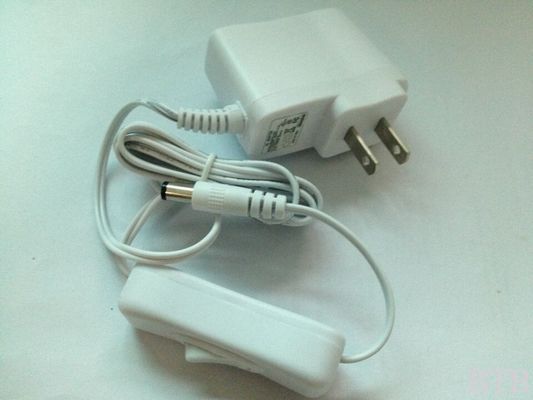

Large Image :  110 - 240v AC 24V 5W adaptor in-line on/off switch

Product Details:

Place of Origin: Shenzhen China
Brand Name: BTB
Certification: CE FCC UL GS SAA PSE Rohs CCC KC
Model Number: BTB-S10-5

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 0.00
Packaging Details: Paper box
Delivery Time: 5-7days
Payment Terms: T/T L/C WESTER UNIN PAYPAL
Supply Ability: 10000000pcs
Contact Now
Detailed Product Description

110 - 240v AC 24V 5W adaptor in-line on/off switch



Product Description

Specification:

Model BTB-0502000Wa BTB-1201000Wa BTB-2400500Wa
AC Input Voltage 100-240V AC 100-240V AC 100-240V AC
Input current 0.25A/230V AC 0.25A/230V AC 0.25A/230V AC
Frequency 47-63 Hz 47-63 Hz 47-63 Hz
Efficiency 85% typical 85% typical 85% typical
Inrush current 30A/230V AC 30A/230V AC 30A/230V AC
Leakage current <0.5A/240V AC <0.5A/240V AC <0.5A/240V AC
DC Output Voltage 5V 12V 24V
Current 0-2000mA 0-1000mA 0-500mA
Rated Power 10W 12W 12W
Ripple&noise 99mvp-p 99mvp-p 99mvp-p
Setup rise hold up time 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
Protection Over Load 120%Max, hiccup mode auto recovery after fault condition is removed
Short Circuit Auto recovery
Environment Store Temperature -20-85°C
Wokring Temperature 0--50°C
Operating Humidity 20%-80%RH
Safty CE Compliant to EN 60950-1:2006; EN61000-6-3:2001;
EN 55022:2006+A1:2007; EN61000-4-2/-3;
EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003
RoHs Free from lead, Cadmium, Mercury, Hexavalent
Chromium and/or PBB &PBDE
others Product dimension 75*29*43mm
Weight 0.09g/pc
Packing 100pcs/ctn,51*23.7*30cm
DC connector size 5.5x2.1, 5.5x2.5. 3.5x1.35 or others
Cable length 1.2M or others


Notes:

  1. Voltage and current can be adjusted by customer requirement.
  2. All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.
  3. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
  4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. DC voltage : the output voltage set at point measure by plug terminal &50% load.
  6. Line regulation is measured from low line to high line at rated load.
  7. Load regulation is measured from 20% to 100% rated load.
  8. The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.



110 - 240v AC 24V 5W adaptor in-line on/off switch110 - 240v AC 24V 5W adaptor in-line on/off switch110 - 240v AC 24V 5W adaptor in-line on/off switch




Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
