Product Details:
Payment & Shipping Terms:
|

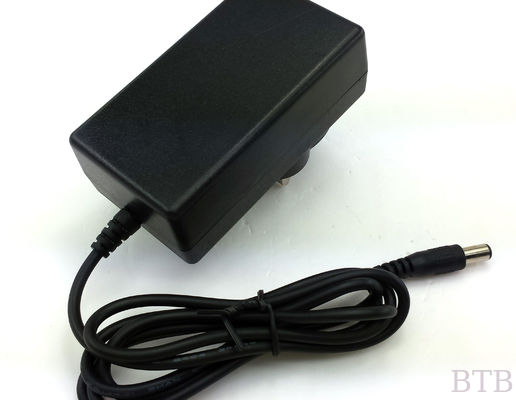

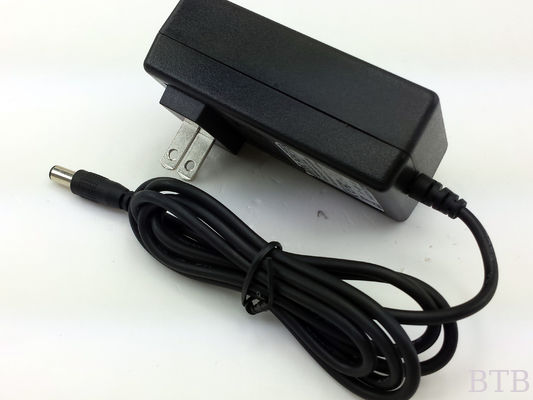

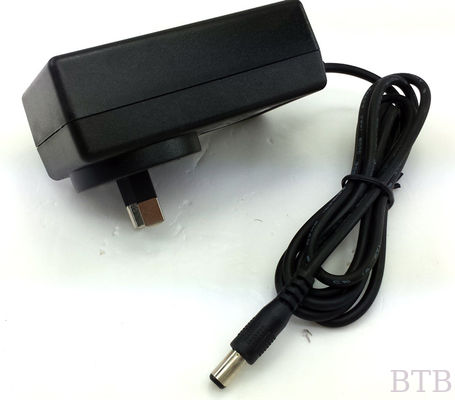

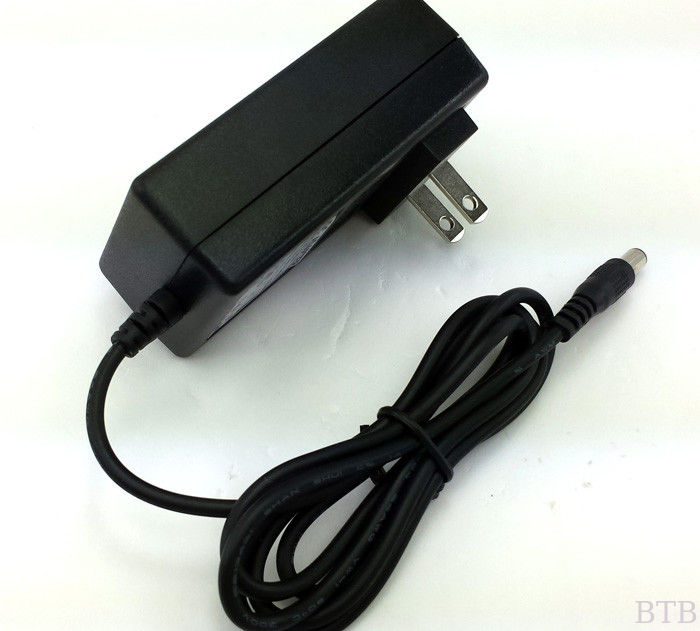

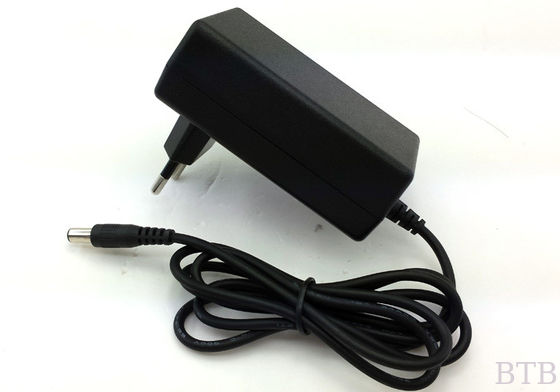

AC Adapter Power Charger 12v 2.58A
| Electrical Specifications | |
| Input Voltage | 100-240Vac,50-60Hz,0.6A Max |
| Output Voltage | 3v to 24v |
| Outputr Current | 0.1a to 3a |
| Average Efficiency | 79% Min |
| Standby Power Loss | 0.3W Max |
| Output Ripple | <50mV at full road with 20MHz bandwidth |
| Over Current Protection | 120%Min |
| Short Circuit Protection | Auto recovery |
| Output Voltage Tolerance | ±5% |
| Reliability | |
| Certificates | CE FCC RoHS CCC etc. |
| High Voltage Test | 3000Vac,60S,5mA Max |
| Insulation Resistance | 7MΩ Min |
| Operating Temperature | 0℃-45℃ |
| Storage Temperature | -10℃-45℃ |
| Burn-in Test | 100% |
| MTBF | Full load over 50000 hours at 25℃ |
| Detail | |
| AC Plug(jack) | EU ,US ,UK,AU plug |
| Appearance | vertical type |
| Color | Black |
| Cable Length | 1.5M |
| DC Connecter Length | 10mm |
| DC plug(jack) Size | 5.5*2.5,5.5*2.1,4.0*1.7,3.5*1.35,2.5*0.7,micro usb prt etc. |
| Size(mm) | 58(L)*27(W)*76(H) |
| Weight | 85g |
| Warranty | 2 years limited warranty |
| Packaging | |
| Packaging include | PE plastic bag + carton |
| Carton Size | 600*430*210mm |
| Quantity/Carton | 200 pcs/Carton |
| Gross Weight/Carton | 18 kg |
We have professional r&d team,any details can be custom-made to cater your market demands.Just feel free to contact us pls.
Adapter Feature:
Professional & high-efficiency research & development department and product department.
Strict quality contral process & reasonable management system,ensure quality with lower production cost,make the price more competitive.
Such as CE FCC RoHS CCC etc,can customize according to your market positioning.
Only needs 5 to 10 business days for conventional type,only needs 10 to 25 business days for custom-made type.
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
Credit is the basis , Quality is the first
Power adapter ,Charger ,Power supply Manufacture
