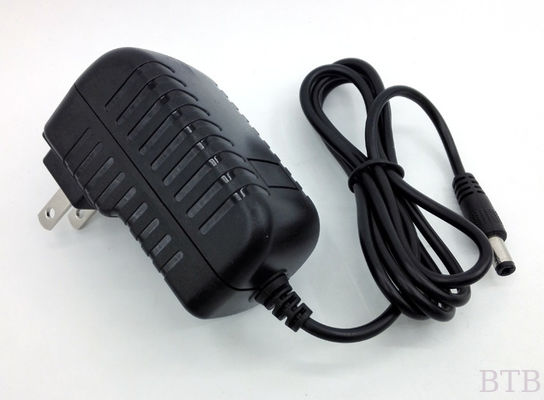

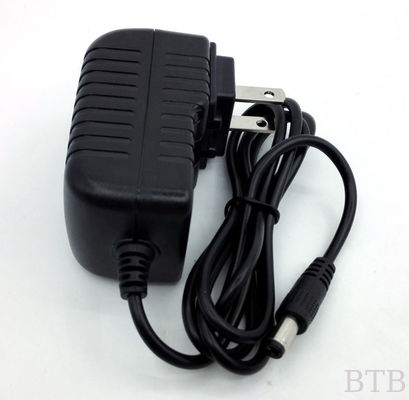

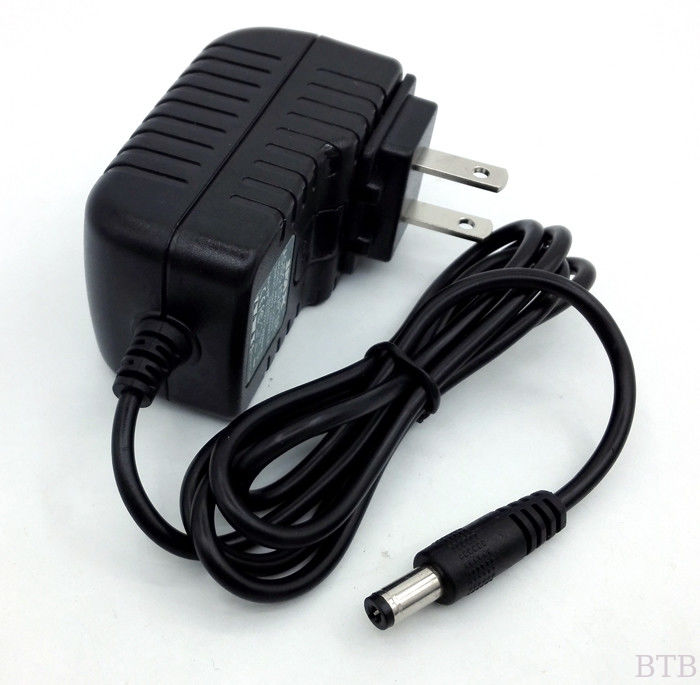

12V 1A wall mounted switching power adapter for modem

Clink more new product

sofa power supply or dc adapters 29v 2a power pack for recliner

Details

1) input voltage: AC 100-240V 50/60HZ
2) range voltage: AC 90-264V 47/63HZ

3) output Power:12W

4) output voltage:12V

5) output currency:1A

Safety Approvals

UL/CUL CLASS II 1310 CSA TUV GS CE BS SAA C-Tick KC PSE Rohs FCC LVD EMC CEC MEPS ERP CB CCC Certifications

Protections

1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection

4Short-circuit protection: automatic recovery ­

5Load regulation: ±5%

Environmental requirement

1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum) ­

5Insulation resistance: DC 500V 100MΩ (minimum) ­

Brand name: BTB

Product Features

1. AC input power suitable for the world

2. Soft-start current can reduce the AC input impact efficiency

3. With short-circuit and overload protection

4. Compact size ,light weight

5. 100%full-load burning test

6. Installed with EMI filter ,minimum wave

Output Power Range	5-48V,0-20A,48-200W(also have those models for selection)
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	90%(MIN)at Rated Voltage
Leakage Current	less than 5mA
Standby power	less than 0.5w
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN60950-1 UL60950-1 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008
