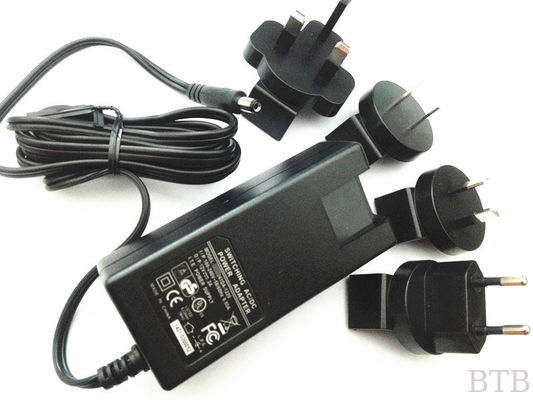

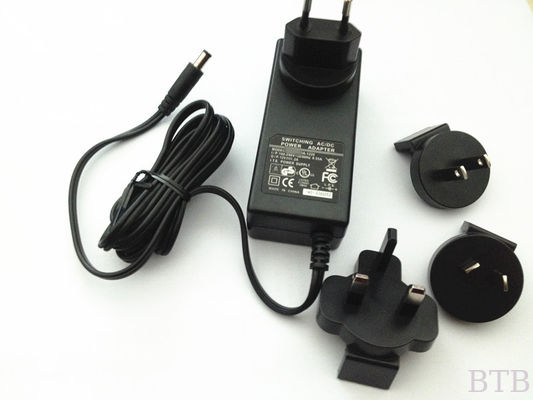

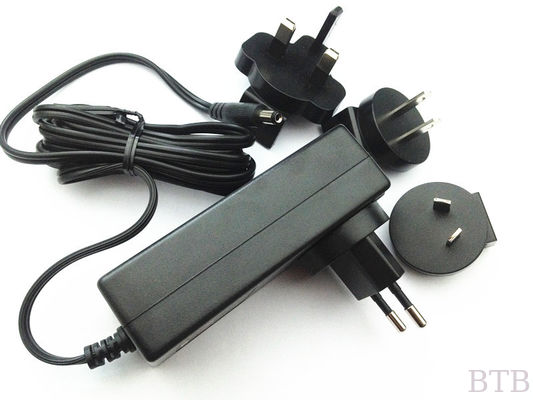

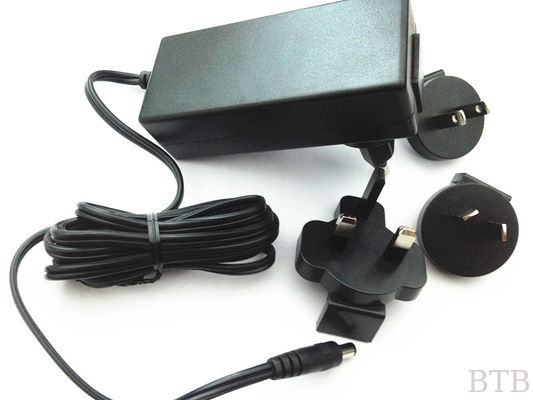

Interchangeable ac plug 12V 2A 1A 5V 2A 12v 5a power adapter with USA/Australia/Europe/UK plugs .dubai for LED .SET TOP BOX
Interchangeable power adaper ac plug 12V 2A 1A 5V 2A 12v 5a power adapter with USA/Australia/Europe/UK plugs .dubai.Kuwait
China interchangeable PLUG power adapter with USA/Australia/Europe/UK worldwide plugs specifications:
| 1.INPUT REQUIREMENT | ||||
| ITEM | SPECIFCATION | MIN | TYP. | MAX |
| NORMAL AC INPUT VOLTAGE | SINGLE PHASE | 100Vac | 110Vac/220Vac | 240Vac |
| AC INPUT VOLTAGE RANGE | SINGLE PHASE | 90Vac | 110Vac/220Vac | 264Vac |
| AC INPUT FREQUENCY | SINGLE PHASE | 47Hz | 50/60Hz | 63Hz |
| AC INPUT CURRENT | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD. | 550mA | ||
| AC INRUSH CURRENT | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD , 25°C. | 30A | ||
| EFFICIENCY | TYPICAL INPUT VOLTAGE& OUTPUT AT FULL LOAD | 78% | ||
| 2.OUTPUT SPECIFICATION | ||||
| ITEM | SPECIFCATION | MIN | TYP. | MAX |
| NORMAL DC OUTPUT VOLTAGE | 12Vdc | |||
| DC OUTPUT VOLTAGE RANGE | TYPICAL OUTPUT VOLTAGE | 11.4V | 12.6V | |
| LOAD CURRENT RANGE | 2.0A | |||
| PEAK LOAD CURRENT | TIME<60S | |||
| RIPPLE | TYPICAL INPUT VOLTAGE , TYPICAL LOAD CURRENT , 25°C | 120mV | ||
| HOLD-UP TIME | AT TYPICAL INPUT VOLTAGE AND FULL LOAD | 10mS | ||
| TURN-ON DELAY | TYPICAL INPUT VOLTAGE AND TUP LOAD CURRENT | 3S | ||
| OVER CURRENT PROTECTION | AUTO RECOVERY | |||
| SHORT CIRCUIT PROTECTRON | THE ADAPTER SHALL NOT DAMAGE BY SHORT THE DC OUTPUT TO GROUND | |||
| OVER VOLTAGE PROTECTION |
| 3.MECHANICAL | ||||
| ITEM | SPECIFICATION OR TEST CONDITION | ACCEPTANCE CRITERIA | ||
| BENDING TEST | NORMAL TEMPERATURE | NO SHORT CIRCUIT | ||
| THE CORD SHALL WITHSTAND WEIGHT OF 200g, SWINGING FROM | NO BREAKAGE OF THE CORD | |||
| LEFT TO RIGHT AT AN ANGLE OF 60 DEG. 1000CYCLE TIMES MIN. | ||||
| S/R SHALL WITHSTAND WEIGHT OF 1N. SWINGING FROM LEFT TO | ||||
| RIGHT AT AN ANGLE OF 60DEG. 1000CYCLE TIMES MIN. | ||||
| BENDING SPEED 40CYCLE/MINUTE | ||||
| VIBRATION | FREQUENCY RANGE:10~55Hz | THERE SHALL BENO | ||
| AMPLITUDE:1.5mm | ABNORMALITY ON THE | |||
| ACCELERATION: 1G | APPEARNCE STRUCTURE | |||
| SWEEP 1 MINUTE FOR X,Y,Z,AXIS EACH | AND OPERATING | |||
| 4.RELIABILITY | ||||
| ITEM | TEST CONDITION | ACCEPTANCE CRITERIA | ||
| TEMPERATURE UP WITH | TEST AT SURFACE OF THE CASE WITH TYPICAL | TEMPERATURE UP UNDER | ||
| TYPICAL LOAD | AC INPUT AND TYPICAL LOAD IN OUTPUT | 35 DEGREES | ||
| 50/60Hz | ||||
| HI-POT TEST | INPUT TO OUTPUT | NO DAMAGE | ||
| GRADUALLY RAISED FROM 0 TO THE 3000Vac AND HELD AT THAT VALUE FOR 3S,10mA | ||||
| MTBF | TYPICAL INPUT&FULL LOAD , 25°C | 5000 HOURS | ||
| BURN-IN | AT 30°C(±10°C),NORMAL INPUT VOLTAGE | 2~4 HOURS | ||
| 5.ENVIRONMENT | ||||
| ITEM | SPECIFICATION OR TEST CONDITION | min. | typ. | max. |
| OPERATING TEMPERATURE | 0°C | 40°C | ||
| STORAGE TEMPERATURE | -20°C | 85°C | ||
| OPERATING HUMILITY | NON-CONDENSING | 5%RH | 90%RH | |
| PART NO.C688-7769 MODEL NO.GEO241DA-1220 V:A1 DATE:2013-8-31 | ||||
| 6.OUTLOOKING | ||||
| DIMENSION | :104(L)X45.4(W)X31(H)mm | |||
| WEIGHT | :ABOUT g | |||
| AC INPUT TYPE | : WALL MOUNT | |||
| DC OUTPUT TYPE | :5.5×2.1×10 S TYPE | |||
| DC OUTPUT CABLE | :USE SPT-1 18AWG WIRE 2M | |||
| INDICATION | :LABEL | |||
| CASE MATERIAL | :94V-0 ABS+PC | |||
| PCB MATERIAL | :94V-0 | |||
| 7.SAFETY | ||||
| COMP LYSAFETY STANDARDS | STANDARD | FILE NO. | ||
| UL FCC CE GS | E60950 | |||
| EMI | ||||
| FCC CE | ||||
| 8.QC CHECK | ||||
| ALL OF THE QUANTITY SHALL BE CHECKED BEFORE SHIPMENT,CHECK ITEM AS BELOW: | ||||
| (1)DC PLUG POLE CHECK | ||||
| (2)OCP FUNCTION CHECK | ||||
| (3)DC OUTPUT VOLTAGE CHECK | ||||
| (4)HIPOT&INSULATION CHECK | ||||
| (5)OUTLOOKING CHECK | ||||
