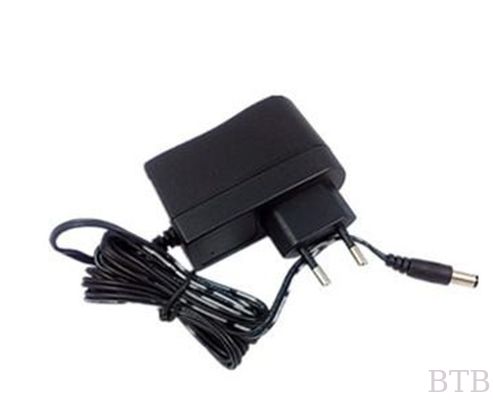

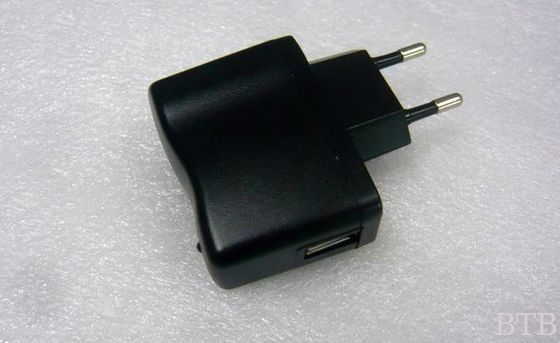

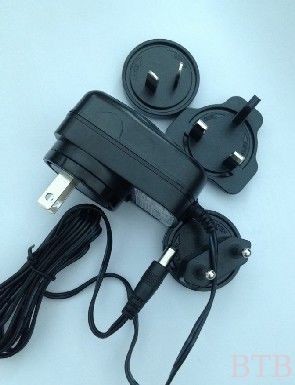

Mall mount adapter 6V 1A 2A CHARGER

 Mall mount adapter 6V 1A 2A CHARGER

Features of power adapter
Universal Input 100~240V AC 50~60Hz
Built-in Class B EMI FilterHigh Efficiency
Short Circuit protection Lightweight Compact

Electrical Specifications of the switching power adapter
(AC Input)Rated Input Voltage: 100~240V AC
Input Current: 0.45A(RMS) @ 115V AC0.20A(RMS) @ 230V AC
Input Frequency: 50~60Hz
Inrush Current: Max. 50A @ 230V Cold Start
Low Standby Power 0.3W Max
Output: 3~24VDC 15W Max.

Environmental Specifications of power adapter
Operating Temperature: 0~40C @ Max. LoadNon-operating Temperature: -40 C 85 C
Humidity: 5% to 95% Non-condensing
Safety Specifications of power adapter:
Standards Reference Class 11 SELV for the following agency Requirements:
CCC, UL, CSA950(cUL), TUV-GS, EMC, CB, FCC. NEMKO. RoHS

Mechanical Specifications of power adaptor
Weight Approx. 110g
Dimension L71.5mm(2.81'')W42.5mm(1.67') H48.5mm(1.90'')
Connectors DC Output: 1.8m wire, "H"shaped head or according to customers' choice.
