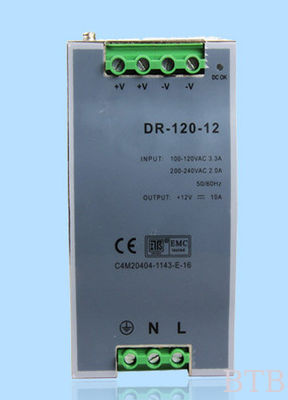

DIN-Rail Switching Power Supply 120W 12V 5V 24V





Feature:
1. DIN-rail specification TS35/ 7.5 or 15
2. Tight structure
3. Short circuit, over load protection
4. 100% full load test
5. LED power indicator
Remarks:
Custom-made specifications are acceptable.
Specification:
Model BDR-120W-12 BDR-120W-15 BDR-120W-24 BDR-120W-48
DC output voltage 12V/ 10A 15V/ 8A 24V/ 5A 48V/ 2.5A
Wave and noise 75mVp-p 75mVp-p 75mVp-p 75mVp-p
Inlet stability + / -0.5% + / -0.5% + / -0.5% + / -0.5%
Load stability + / -1% + / -0.5% + / -0.5% + / -0.5%
Efficiency 80% 81% 84% 85%
Adjustable range for DC voltage + / -10% + / -10% + / -10% + / -10%
AC input voltage range Input voltage: AC110/ 220V+ / -20% selectable by switch
AC inrush current Cold-start current 20A/ 115VAC 40A/ 230V
Overload protection 105% -150% constant current limiting, auto-recovery
Over-voltage protection 120% -140% rated output voltage
Setup rise hold up time 500ms 70ms 30ms 230VAC
Withstand voltage I/ P-O/ P 3KV I/ P-FG: 1.5KV O/ P-FG: 0.5KV 1minute
Isolation resistance IP-O/ P I/ P-FG O/ P-FG: 500VDC/ 100M©
Working temperature -10~ 50º C
Safety standards Design refer to GB4943, UL60950, EN60950
EMC standards Design refer to GB9254, EN55022 Class B
Weight 0.79kg
Size 65.5* 125.2* 100mm
