S-150-12 Single output 150w 12v ac-dc Power Supply

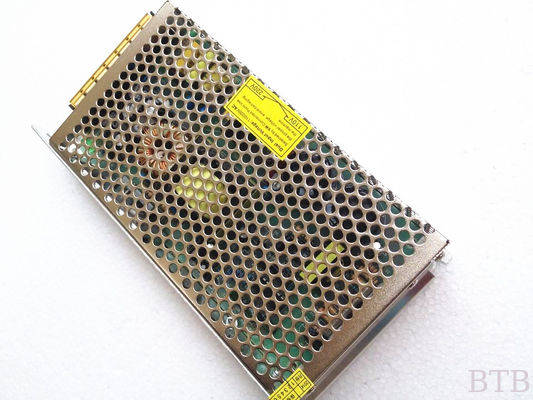

Large Image : S-150-12 Single output 150w 12v ac-dc Power Supply

Product Details:

Place of Origin:	China
Brand Name:	BTB
Certification:	CE ,CCC,
Model Number:	BTB-W12-12

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	$2.0-$10.00
Packaging Details:	Paper box
Delivery Time:	3-5days
Payment Terms:	T/T PAYPAL WEST UNION, L/C, MoneyGram, Western Union
Supply Ability:	10000000pcs

Contact Now

Detailed Product Description

Color:	Silvery	Warranty:	3 Years
OEM:	Yes	Packing:	PE Bags+ Paper Box

S-150-12 Single output 150w 12v ac-dc Power Supply

150W Single Output Switching Power Supplies S-150 series

SPECIFICATIONS
OUTPUT
Model	S-150-5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
Rated Current	30A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
Voltage Adj. Range	±10%	-12%;+15%	-12%;+10%	-12%;+11%	±10%	-12%;+16%	-12%;+11%	±10%
INPUT
Voltage Range	88~132VAC/176~264VAC selected by switch 47~63Hz; 248~370VDC
AC Current	3.2A/115V 1.6A/230V
Leakage Current	<3.5mA/240VAC
	Protection type: Shut down o/p voltage, re-power on to recover

Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes


STANDARD
Safety Standard	Design refer to UL1012, UL1950, TUV EN60950
EMC Standard	Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024
OTHERS
Dimension	19911050mm(LWH)
Weight	0.8Kg
Packing	16pcs/13.8Kg/0.95CUFT

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
