Product Details:
Payment & Shipping Terms:
|
| Color: | Black Or White | Warranty: | 3 Years |
|---|---|---|---|
| OEM: | Yes | Dc Cable: | 1.2m 1.5m 1.8m 2m |
| DC Plug: | For You Choose | Certificate: | CE FCC ROHS |
dual output switching power supply 12v 5v 2a ac dc adaptor
dual output switching power supply 12v 5v 2a ac dc adaptor
Datasheet of dual power supply 12V 5V
INPUT: 100-240 VAC ~ 50/60Hz 1A
OUTPUT: 5V ----- 2A
12V ----- 2A
Connector Pin Out: 4Pin Mini Din type
Features of dual power supply
- High Efficiency
- High Reliability
- Over Load Protection
- Over Current Protection
- Short Circuit Protection
- Over Voltage Protection
- Over Temperature Protection
Remark

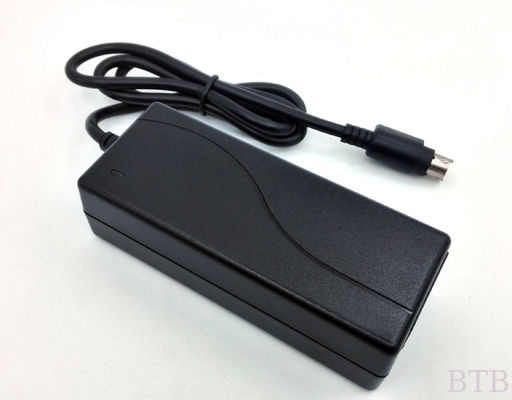

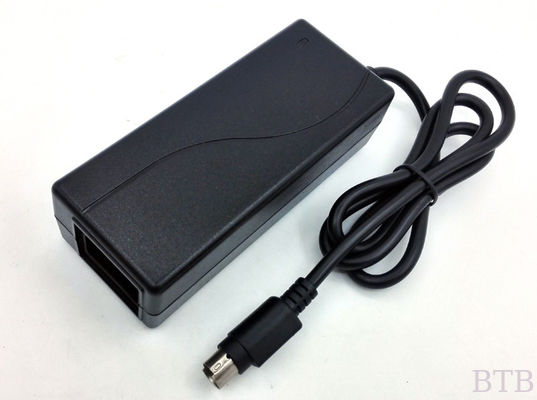

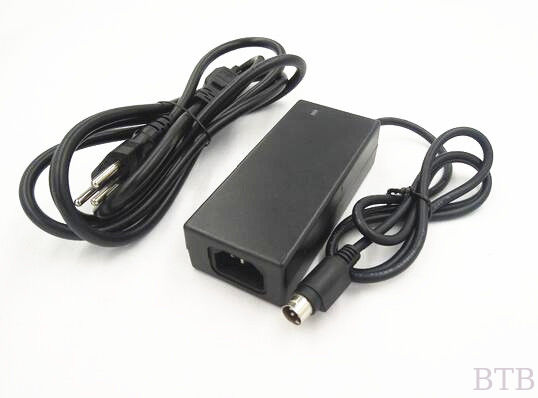

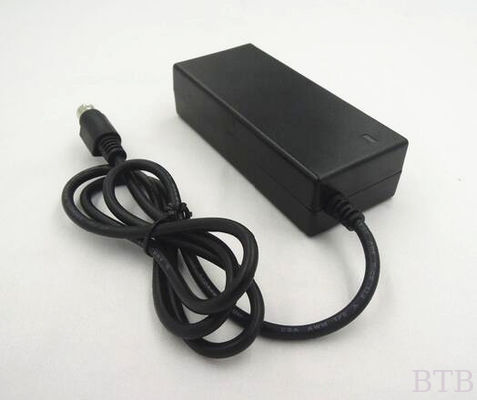

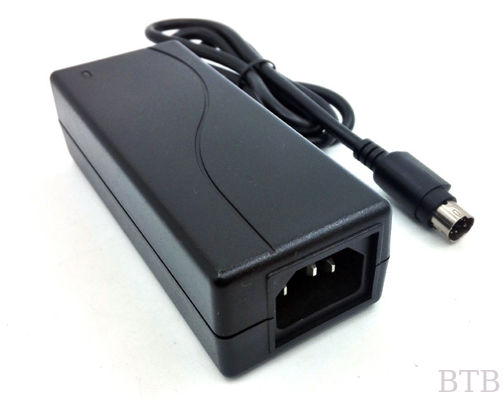

Picture of power supply 12v 5v
| Item | UL CE approved AC DC Adapter | |
| Input | 90V - 264V AC / 47Hz - 63Hz | |
| Output | 5V - 28V DC / 100mA - 2000mA | |
| Dimension( L x W x H ) | 150*62.5*34mm / 76*43*36mm / 90*51*58mm | |
| Load Regulation | ±5% | |
| Working Efficiency | Class V | |
| Ripple/Noise | 100mV Min(P-P) | |
| Inrush Current | 15A Max @ 115V AC | |
| Line Regulation | ±1% | |
| Operating Temperature | 0 to 40°C | |
| Storage Temperature | -10 to 70°C | |
| DC Jack (Plug) | 5.5mm x 2.1mm 5.5mm x 2.5mm 4.0mm x 1.7mm |
|
| DC Cable Length | 1.5/1.8/2.0/2.5/3.5m | |
| Weight | 90g - 350g | |
| Color | Black/white |
Clink more new product
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
