Product Details:
Payment & Shipping Terms:
|

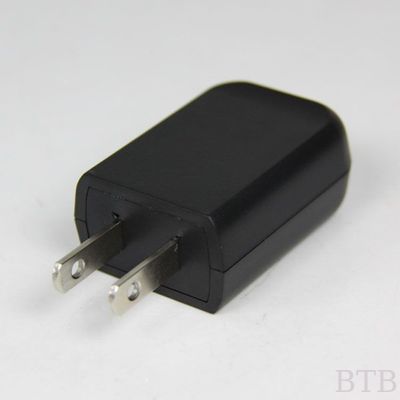

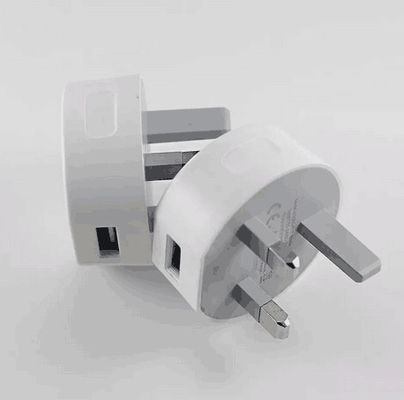

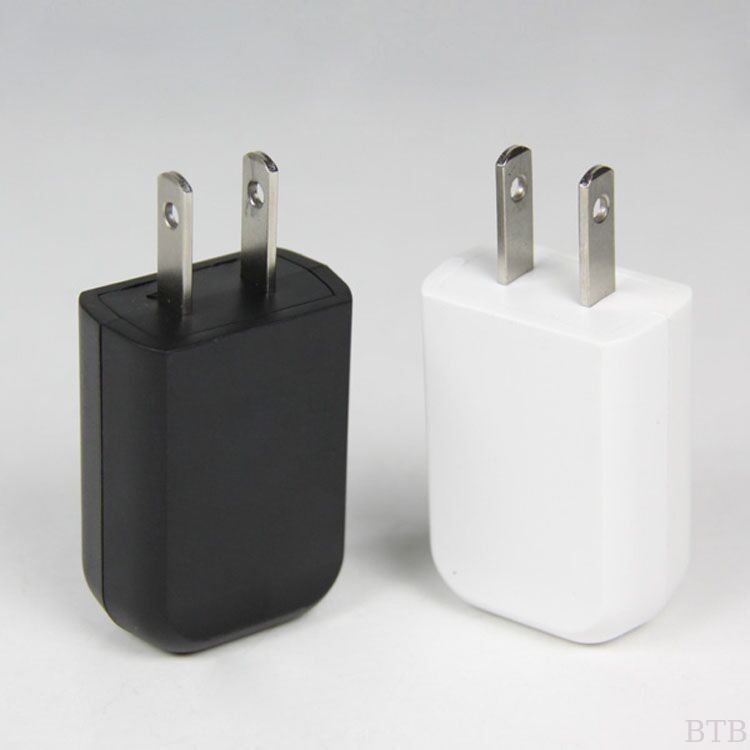

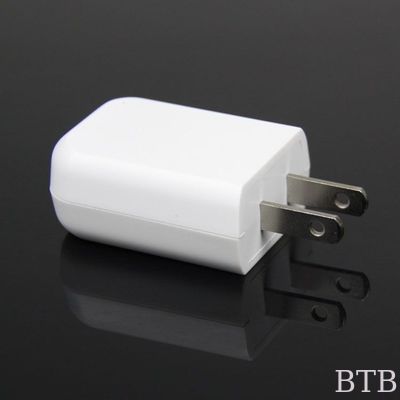

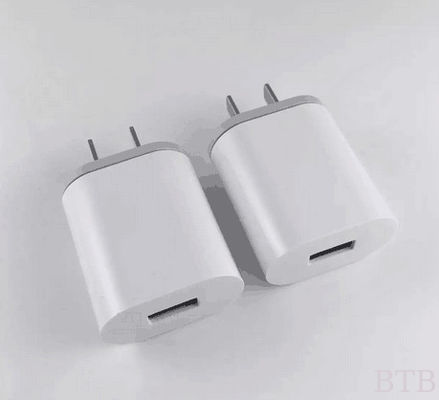

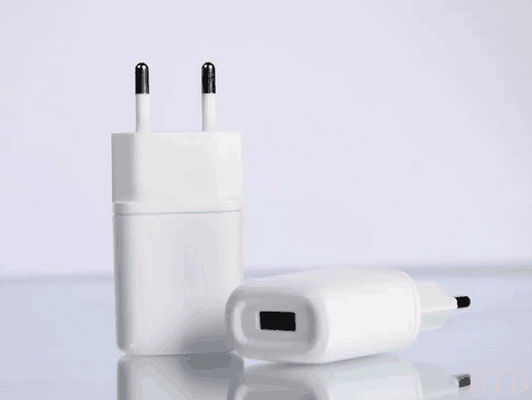

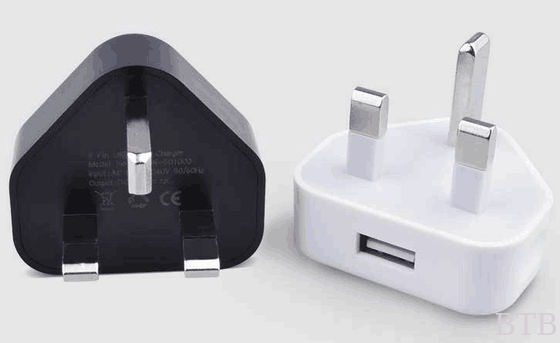

5V 500MA 700ma 800ma 900ma 1000mA mini charger free sample
| Brand Name: | •BTB |
| Input: | •Input Voltage: 90to 264 VAC •Frequency :47-50/60-63hz •Input current :0.4A (Max) 100 /240VAC •Inrush current : 60A Max.240VAC at max Load •Leakage current:0.25 mA Max |
| Output: | •Over voltage protection •Over current protection at 110-200% of lo and Auto-recovery •Electronic short circuit protection •Operating temperature 0~40℃ Free convection •Operating humidity 10-90% RH Non Condensing •Sea level Non-operating temperature -20~ 80℃ |
| Safety standards: | •Information technology equipment •IEC/EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-03 |
| Certificates and approvals: | •UL ,FCC ,PSE,NOM |
| EMI Emission: | •Radiation Test&Conduction Test:EN 55022/EN55020/FCC Part15 •Harmonic Test : EN 61000-3-2 •Flicker Test : EN 61000-3-3. |
| EMS immunity: | •ESD Test:EN 61000-4-2 •RS Test:EN 61000-4-3 •EFT Test:EN 61000-4-4 •Surge Test:EN 61000-4-5 •CS Test:EN 61000-4-6 •DIP Test:EN 61000-4-11 |
| Key Applications: | Key features •Light, extra slim, sleek, compact design •Green power, full complies with CEC level V, MEPS IV EUP2011 •High power density •Extra safe design, have got their respective safety approvals •Completed protect function Key Applications •It’s suitable for an extremely wide range of applications, including: •Mobile Devices •Printer •Pos •Charger •Audio & Video product |
| Payment Details: | •Payment Terms: T/T,negotiable for OEMs |
| Main Export Markets: | • Eastern Europe • North America • Mid East/Africa • Central/South America • Asia • Western Europe • Australasia |
Description:
1. Surface cosiness, small size and convenient carrying
2. Low cost, high reliability and all cases are covered by ultrasonic
3. Built-in OVP, OCP and SCP
4. Universal input voltage:
a. I/P voltage 100-240VAC; 50/60Hz
b. Turn on delay time≤3s
c. Inrush current≤30A/24V AC
5. O/P:
a. High accuracy and low noice
b. Hold up time ≥20mS
6. Operation model: CV
7. Environment:
a. Operation temperature: 0°C-40°C;5%-90%RH
b. Storage temperature: -20°C-85°C;5%-95%RH
8. Cooling: Natural cooling
9. Energy standard: CEC/ERP
10. Safety standard: IEC/EN60950
11. Insulation: hi-pot, 3,000V AC 60S 10mA
12. Leakage current: 0.25mA (maximum)
13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
14. RoHS compliant
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
