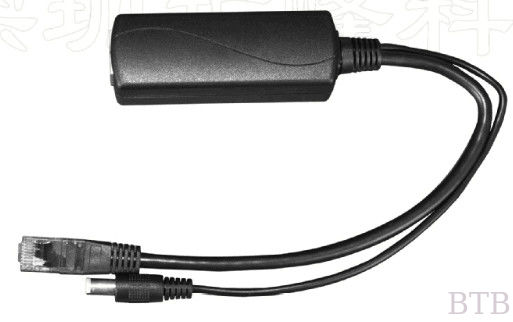

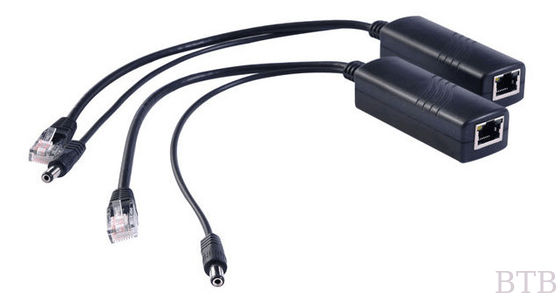

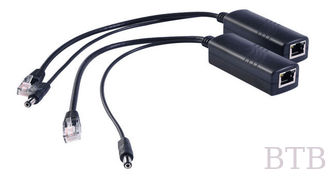

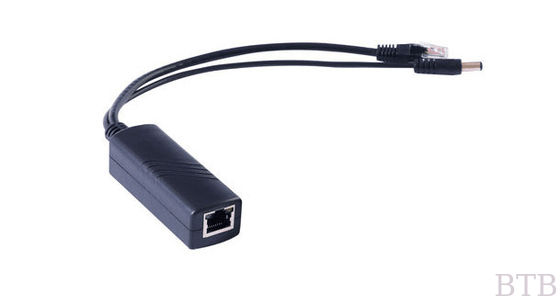

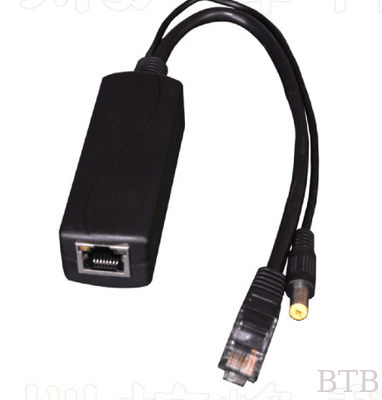

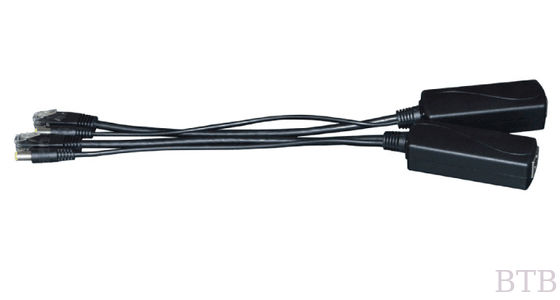

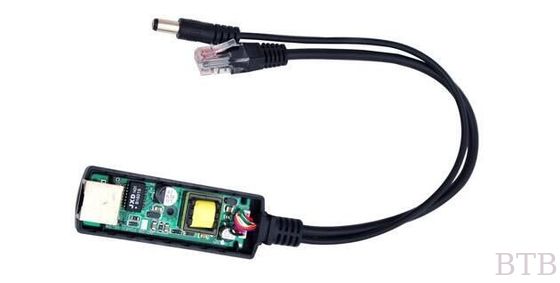

2 pcs/Lot Power Over Ethernet POE Splitter 12V 2A POE Adapter For IP Cameras

Features:

• IEEE802.3at/af Compliant
• Input voltage range 36V to 57V
• 10/100/1000Mbps fast Ethernet
• Maximum 30W output power
• Integral high efficiency DC/DC converter
• Low output ripple and noise
• High performance with low price
• Short-circuit protection
• Transformer isolation,1500V isolation (input to output)
• Easy to use, with a minimum number of external components

Applications:

• IP Cameras Security and alarm systems
• Wireless access point
• VOIP telephone
• Point of sale network terminal equipment

Specification:

• Input : 36-57V DC
• Output: 5/9/12/24V(5-25W)
• Data: 1/2&3/6&4/5&7/8
• Power: Mode A&ModeB(Input),DC 1.35/2.1mm(Output)
• Data&Power In: POE ADAPTER/POE Switch/Injector
• Weight: 55g
• Dimensions: 350mm(Cable L=200mm)
• Cable: TIA/EIA 568 Cat. 5/5e/6/6e
• Data rate: 10/100/1000Mbps
• Connector: RJ-45
• Operating Temperature: -40°C~+70°C
• Operating Humidity: 5%~90%RH
• Certification: CE , FCC

How to order:

• 5V10W ----5V 2A Gigabit PoE Splitter DC 1.35mm
• 12V12W ----12V 1A Gigabit PoE Splitter DC 2.1mm
• 12V24W ----12V 2A Gigabit PoE Splitter DC 2.1mm
• 24V24W ----24V 1A Gigabit PoE Splitter DC 2.1mm
