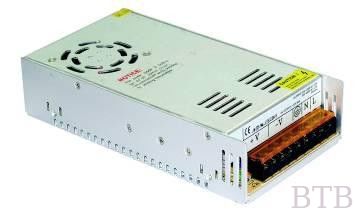

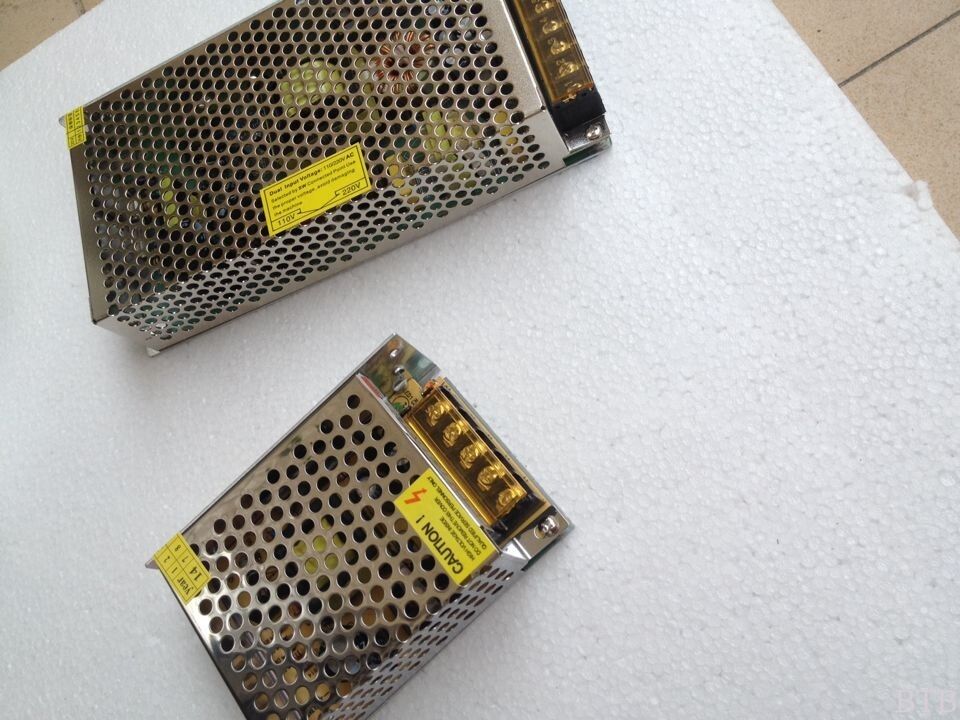

Name: 24v 20a switch power supply
Brand: BTB TECHNOLOGY CO.LTD
SKU: BTB-150-12
Availability: InStock

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

BTB

Certification:

CE ,FCC ,CCC,Rohs,EMC,LVD

Model Number:

BTB-150-12

Minimum Order Quantity:

100 Piece/Pieces

Price:

0.00

Packaging Details:

Standard packing,or According to the requirements of customer packaging.

Supply Ability:

200000 Piece/Pieces per Week

Warranty:

3 Years

Delivery Time:

7-10days

Sample Time:

3-5days

Payment Terms:

T/t L/c Paypal West Union

Packing:

OEM OR White Box

Trad Terms:

FOB Shenzhen

24v 20a switch power supply

Place of Origin: Guangdong, China (Mainland)

Brand Name: BTB

Model Number: BTB-150-12

Output Type: DC

Connection: Desktop

color: white and black or other

warranty: 3 years

used: cctv camera /set top box/router

Packing: paper box or OEM colore box

protection: OVP .OPP SCP

Working temprature: -10 ~60°

material: aluminum

output: dual .singel,triple,quad,din rail

efficient: 86%

Certificate: CE SAA FCC

Packaging Details:

Standard packing,or According to the requirements of customer packaging.

Delivery Detail:

7-10days

Specifications

Switching Power Supply for LED
Rated Current:4.5A
Voltage:85~132VAC
Cooling by free air convection
3year warranty

Features:
High efficiency, high reliability and low cost
For AC power supply input global
100% full load and machine test
Protection characteristics: short circuit/overload/pressure
PWM control and adjustment
Built-in dc electric fan forced air cooling
Built-in fan switch control
Working frequency 25 KHz
1 year warranty
Size: 215*115*50mm(L*W*H)

model

S-250-5

S-300-7.5

S-350-12

S-350-13.5

S-350-15

S-350-24

S-350-27

S-350-48

output

Dc output voltage

7.5V

12V

13.5V

15V

24V

27V

48V

Output voltage tolerance

±2%

±1%

Rated output current

50A

40A

29A

25.8A

23.2A

14.6A

13A

7.3A

Output current range

0-50A

0-40A

0-29A

0-25.8A

0-23.2A

0-14.6A

0-13A

0-7.3A

Output power

250W

300W

348W

348.3W

348W

350.4W

351W

350.4W

Ripple and the noise

150mVp-p

200mVp-p

240mVp-p

Dc voltage adjustable scope

-10%,+12%

±20%

-16%,+10%

-12%,+11%

-10%,+20%

-16%,+10%

-4%,+18%

-15%,+17%

Start, rise, keep time

200ms,50ms,20ms Loaded with

input

Input voltage range

90~132 VAC/180~264VAC 47~63 Hz;The switch choice
254~370VDC

Exchange input current

6.5A/115 V 4A/ 230 V

efficiency

74%

76%

79%

78%

81%

82%

83%

Impulse current

Cold start current
50A/115V 50A/230V

Leakage current

<3.5 mA/240VAC

Protection characteristics

Overload protection

105%~135%

Protection way: current limiting, automatic recovery

Overvoltage protection

115%~135%

Protection way: voltage limitation, automatic recovery

Fan on/off control

RT3 acuity 55 ℃ fan open more than 45 ℃, wind 80 ℃ quartile organs, the cut off output (5 ~ 7.5 V)

RT3 acuity 65 ℃ and 55 ℃, fan open more than 80 ℃, the authorities: cut off output (12 to 15 V)

RT3 acuity 70 ℃ open more than 60 ℃ fan, wind, 85 ℃ cut off: authorities output (24 to 48 V)

environment

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis

security

Compression sex

Input/output: 1.5 KVAC input and between to KVAC output and the earth: 1.5:0.5 KVAC

Insulation resistance

Between the input and output, the input and output, and ground: 100 M / 500 VDC Ohms

standard

Safety standards

Accord with
UL1950

EMC standard

Drsign refer to FCC Part15 J Conduction Class A

other

weight

1.1.5Kg

packaging

12pcs/14.3Kg/0.93CUFT
