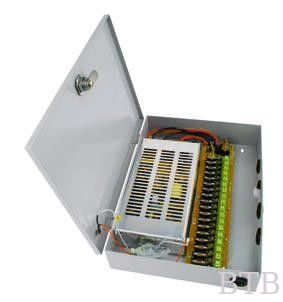

12V DC 10 Amp 8 channel CCTV Uninterruptible Power Supply

Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection

Input:  100-240V AC  @ 50-60Hz
Output voltage: 12-14V DC ADJ

Output Current: 8Amp

Output Channel: 9 Channel
Over-current Protection: 9A±5%
Ripple & Noise: ≤100mV
Efficiency ≥85%

Charge Voltage: 13.5V

Charge Current (Max.): 1Amp

Battery Under-voltage Protection: 10V
Enclosure Dimensions: 360*195*75mm
Weight: 2.4kg

Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection
AC faulty indicator / battery low voltage indicator

Input:  190-240V AC  @ 50-60Hz
Output voltage: 12V±15% DC

Output Current: 10Amp

Output Channel: 16 Channel
Over-current Protection: 11A±5%
Ripple & Noise: ≤100mV
Efficiency ≥85%

Charge Voltage: 13.5V

Charge Current (Max.): 1Amp

Battery Under-voltage Protection: 10V
Enclosure Dimensions: 285*285*125mm
Weight: 4.2kg
