desktop adapter

China desktop adapter supplier
desktop adapter supplier desktop adapter supplier desktop adapter supplier desktop adapter supplier desktop adapter supplier

Large Image :  desktop adapter

Product Details:

Place of Origin: China
Brand Name: BTB
Certification: CE CB UL FCC SAA GS ROHS CCC KC
Model Number: B-001500200

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 4-10
Packaging Details: standard packing
Delivery Time: 1-3weeks
Payment Terms: T/T,L/C,Western union,Cash,Paypal
Supply Ability: 3500000
Detailed Product Description

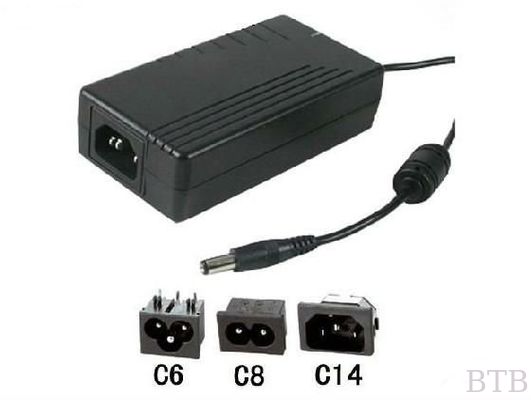

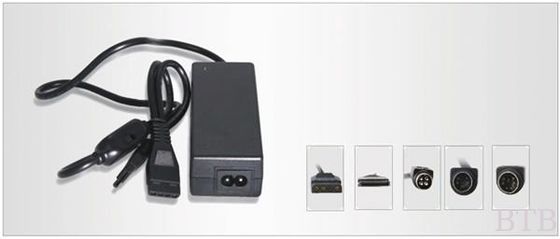

12v 5a desktop adapter



Input 100 to 240V AC, 50/60Hz
Output power 15W30w45w60w
Output voltage 15VDC
Output current 1A/2A3A/4A
Color available Purple ,red ,orange ,yello ,blue,silver etc
Outlet single usb ,dual usb or with cable
Protection Overload protection
Output over voltage protection
Short circuit protection
Certificate CEC power supply standard
CE approved (EMC, TVD)
KC
PSE
ROHS
FCC
Efficiency Mini 75 %
Standard DC Connector Micro USB & Mini USB & iPhone 30Pin & 2.0*0.7 & 2.5*0.75 &
3.5*1.35 & 4.0*1.7 &5.5*2.1 &5.5*2.5
No Load Power Consumption 0.3W at Rated Voltage
Ripple And Noise Output voltage 1%
High-Voltage test Primary to secondary: 3 kV 5 mA 60S
Leakage Current 0.5 mA(max) at input 240V AC
Operating Temperature Range 0--40°C
Storage Temperature Range -20 --- 85°C
High Humidity Operation + 40 °C and 90 ~ 95% Humidity
Dimension 72.5mm*48mm*29mm
Net weight USBAbout 65 gram per unit
MTBF 50,000 hours
Insulation Resistance:Primary to Secondary 50 Meg. Ohms min. 500VDC
Application Mobile phone, Tablet PC, Bluetooth headset, MID,Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A Qty: 100PCS/CTN
MEA: L46.5*W34*H14.5cm
Packing Material:PE bag+white box+carton
Packing B Qty: 100PCS/CTN
MEA: L47cm*W38cm*H25cm
Packing Material:PE bag+Paper segment+carton
Packing c Qty: 100PCS/CTN
MEA: L43.5cm*W35.6cm*H27cm
Packing Material:Blister+carton

desktop adapter0000

desktop adapter

desktop adapter

 desktop adapterdesktop adapter

 desktop adapter

 desktop adapter
