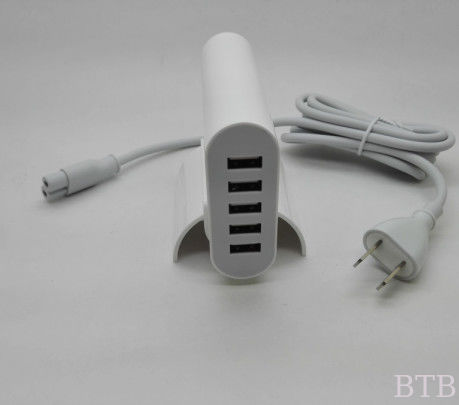

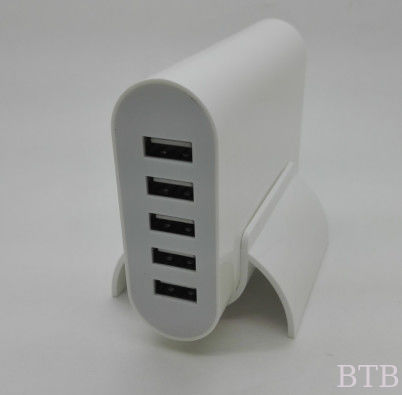

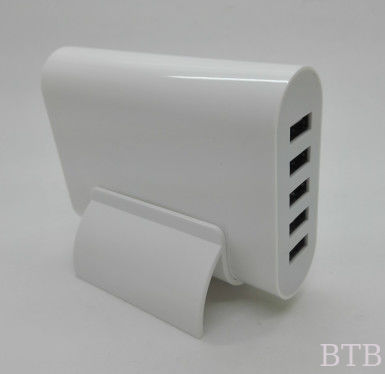

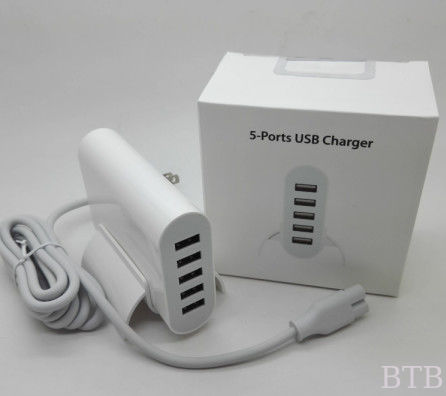

desktop 6usb 5usb charger

5V 6A 5 usb  charger  CE LVD EMC certificate

Protection

A.Over Current Protection: 120% min

B.Over Voltage Protection: 120% min

C.Short Circuit Protection: Auto Recovery

General characteristics

A.Operating Temperature: 0-50°C

B.Storage Temperature: -40-85°C

C.Humidity: 5~95%RH

D.Output Ripple and Noise: <100mV Vp-p(max)

E.Output Rising Time: 100ms Max. At 100Vac input and output Max. Load

F.Output Hold up Time: 5ms Min At 230Vac

G.Turn On Delay Time: 3 second Max .At 100Vac input and output Max. Load

H. Withstanding Voltage: AC 3750V(Min)(between input and output) 5mA(Max)

I.  Insulation Resistance DC 500V 100MΩ (min) (between input and output)

J.Efficiency: 80%

K.Leakage current: 0.25mA Max .At 240Vac input

L.Load Regulation: ±5%

M.Line Regulation: ± 5
