Product Details:
Payment & Shipping Terms:
|

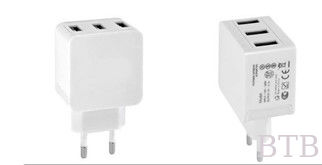

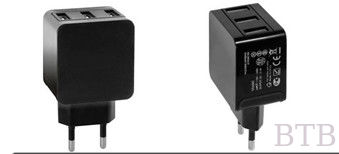

UL GS PSE mini size three USB Power Adapter
| Input | 100 to 220V AC, 50/60Hz |
| Output power | 5W series |
| Output voltage | 5Vdc |
| Output current | 3.4A |
| Protection | Overload protection |
| Output over voltage protection | |
| Short circuit protection | |
| Certificate | CEC power supply standard |
| CE approved (EMC, LVD) | |
| KC,PSE,GS,UL,CE,FCC,C-TICK,SAA | |
| ROHS,REACH | |
| ERP,MEPS | |
| Efficiency | Mini 85 % |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 /4.0*1.7/3.5*1.35/6.3*3.0/2.5*0.7 with pin inside |
| No Load Power Consumption | ≤0.3W at Rated Voltage |
| Ripple And Noise | Output voltage 1% |
| High-Voltage test | Primary to secondary: 3 kV 5 mA 60S |
| Leakage Current | 0.5 mA(max) at input 240V AC |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| MTBF | 50,000 hours |
| Application |
Phone,Tablet,Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, etc. |
