Product Details:
Payment & Shipping Terms:
|
| Input: | 100-240vac | Output: | 12V Or 24V |
|---|---|---|---|
| IP: | IP44 | Warranty: | 3 Years |
| Certificate: | CE ROHS FCC SAA | Matrail: | Aluminum |
12V 1A 2a plasitic case Rainproof Power Supply for cctv camera free sample +free shipping by DHL sample +free shipping by DHL

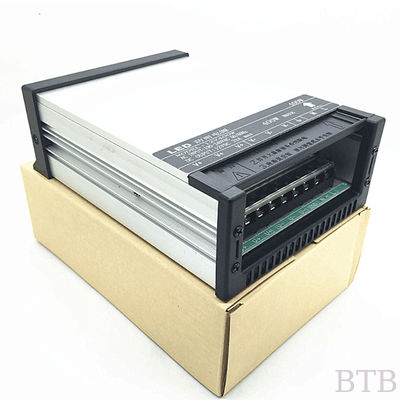

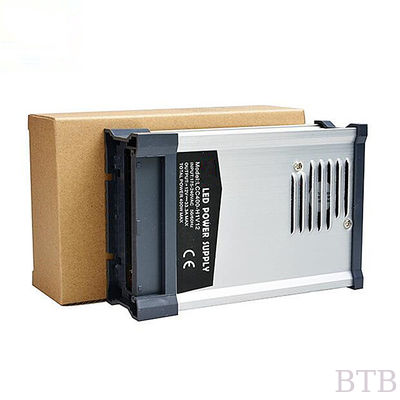

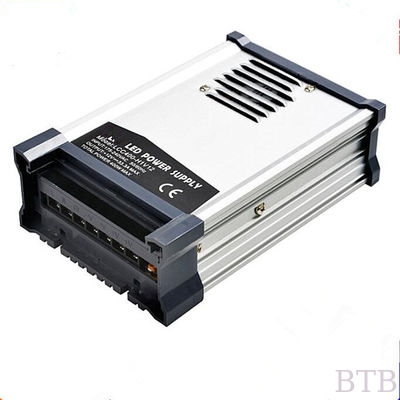

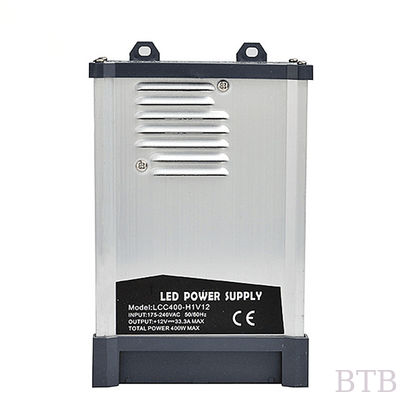

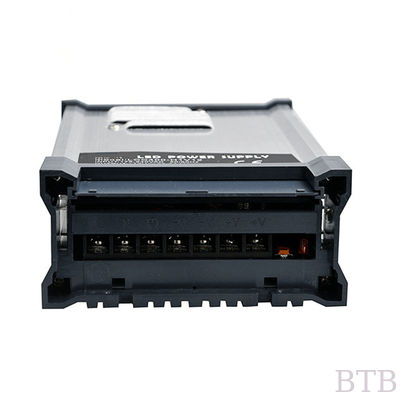

LED light drivers 12V 400W 33A Rainproof Power Supply Outdoor Power Supply LED Advertising
BTB(HK)TECHNOLOGY CO.'LTD
M/Wechat:+8613412619588
Skype : Beryl--qin
Email : mx1 AT btbadapter.com
Web: www.btbadapter.com
The input specifications
The input voltage
AC190V - 240 - v
Input frequency
47-63 hz
Input surge
The cold state is 20A @120vac 40A@230VAC.
Output specifications
Output voltage adjustable range.
Output voltage current
DC 12 v - a
The startup time
(230V input, Io=100%)
Keep the time
20mS (230V input, Io=100%)
Voltage regulation
(full load)
Protection function
Overload protection
105%-- 150% rated power, automatic recovery.
Overvoltage protection short circuit protection.
105%---150% rated voltage.
Dielectric strength
Input - output
1500 vac / 1 min
Input -
1500 vac / 1 min
In output -
500 vac / 1 min
Safety standards
In line with the GB4943, UL60950-1, EN60950-1
EMC standard
It conforms to GB9254, EN55022 class A.
The environment
Working temperature
- 20 ℃ ~ 60 ℃ / 20% ~ 90% RH (no frost)
Storage temperature
- 40 ℃ ~ 85 ℃ / 10% ~ 95% RH (no frost)
The altitude
<= 4000 m
structure
Size (mm)
Length 188X wide 116 X high 50.
The cooling way
Cooling form
Natural wind form cooling.
The weight of the
0.85 KG/PCS
