12volt 30amp switching power supply for LED lights

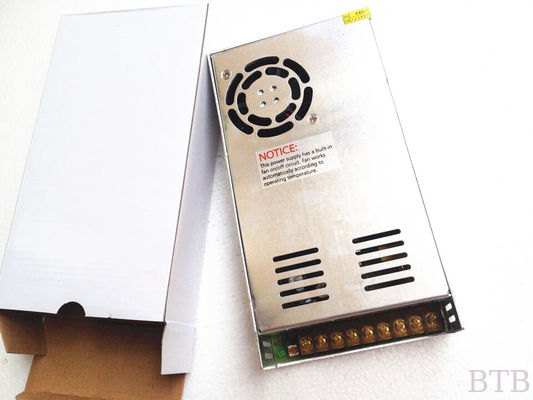

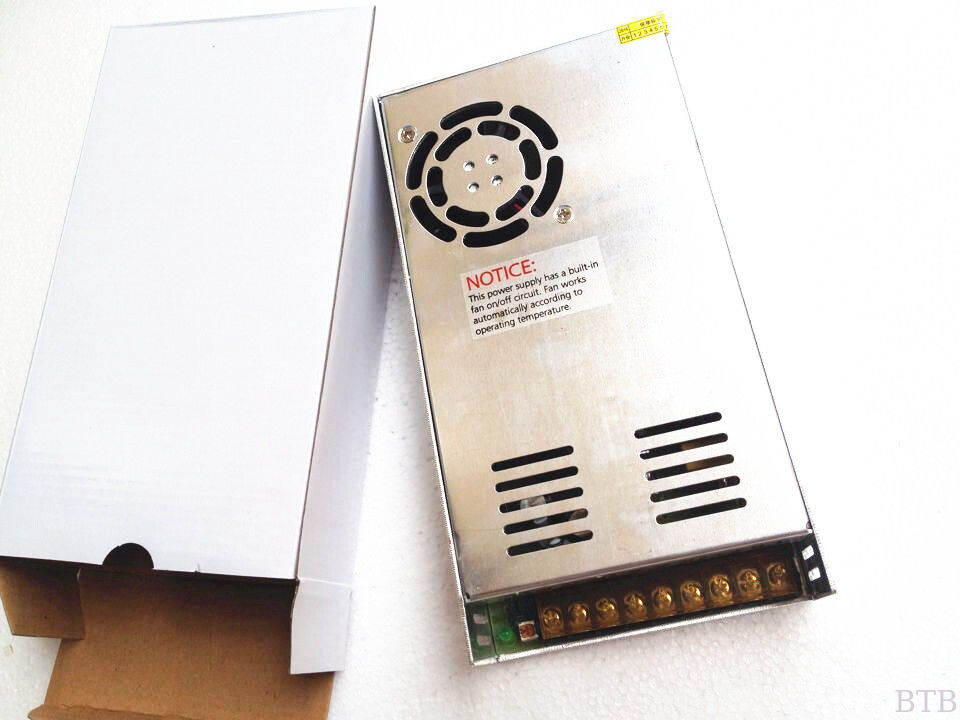

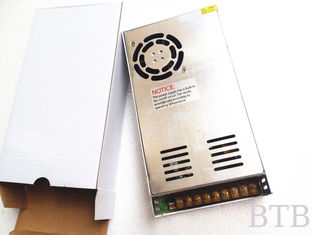

Large Image : 12volt 30amp switching power supply for LED lights

Product Details:

Place of Origin:	China
Brand Name:	BTB
Certification:	CE ,CCC,
Model Number:	BTB-W12-12

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	$2.0-$10.00
Packaging Details:	Paper box
Delivery Time:	3-5days
Payment Terms:	T/T PAYPAL WEST UNION, L/C, MoneyGram, Western Union
Supply Ability:	10000000pcs

Contact Now

Detailed Product Description

Color:	Silvery	Warranty:	3 Years
OEM:	Yes	Packing:	PE Bags+ Paper Box

12volt 30amp switching power supply for LED lights
Features
• Universal AC input / Full range
• Protections:Short circuit/Over load/Over voltage
• Forced air cooling by built-in DC fan
• PWM control and regulated
• Built-in cooling Fan ON-OFF control
• 100% full load burn-in test
• Fixed switching frequency at 25KHz
• Low cost
Specifications

Model		S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
Output	DC Voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
	Rated Current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
	Current Range	0 ~ 50A	0 ~ 40A	0 ~ 12A	0 ~ 13.5A	0 ~ 23.2A	0 ~ 14.6A	0 ~ 13A	0 ~ 7.3A
	Rated Power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
	Ripple & Noise (max.) Note.2	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
	Voltage Adj. Range	4.5 ~ 5.6V	6~9V	10~13.2V	12 ~ 15V	13.5~18V	20~26.4V	26 ~ 32V	41 ~ 56V
	Voltage Tolerance Note.3	±2.0%	±2.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±1.0%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Setup,Rise, Hold time	200ms, 50ms, 20ms at full load
Input	Voltage Range	90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	73%	76%	74%	79%	78%	81%	82%	83%
	AC Current	6.5A/115VAC 4A/230VAC
	Inrush Current (max.)	50A/115VAC 50A/230VAC
	Leakage Current	<3.5mA / 240VAC
Protection	Over Load	105 ~ 135% rated output power
	Over Load	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	5.75 ~ 6.75V	9.4 ~ 10.9V	13.8V~16.2V	15.5 ~ 18.2V	18V~21V	27.6V~32.4V	33.7 ~ 39.2V	57.6 ~ 67.2V
	Over Voltage	Protection type : Hiccup mode, recovers automatically after fault condition is removed
Function	Fan on/ off Control	RTH3 ≥55°c FAN ON, ≤45°c FAN OFF, ≥80°c output shutdown (5 ~ 7.5V)
		RTH3 ≥65°c FAN ON, ≤55°c FAN OFF, ≥80°c output shutdown (12 ~ 15V)
		RTH3 ≥70°c FAN ON, ≤60°c FAN OFF, ≥85°c output shutdown (24 ~ 48V)
Environment	Working Temperature	-10 ~ +50°c (Refer to output load derating curve)
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety & EMC	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Others	MTBF	234.3K hrs min. MIL-HDBK-217F ( 25°c )
	Dimension	21511550mm (LWH)
	Packing	1.07Kg; 12pcs/13.5Kg/0.92CUFT
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°c of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Product Description

Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
