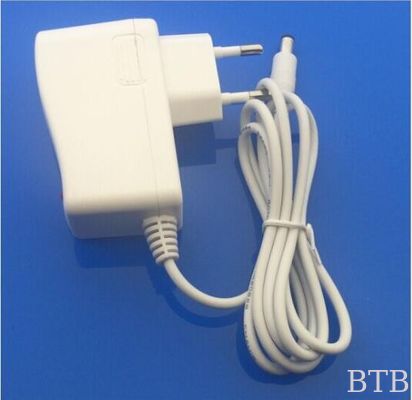

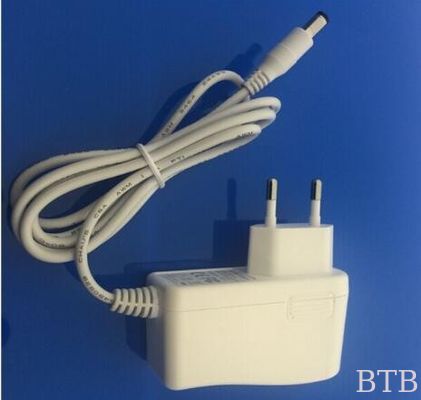

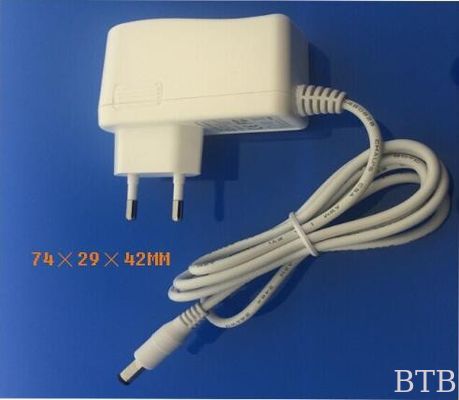

12v 1a ac dc power adapter with jack adapter - great Wall mounted power supply
|
Features : Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Coolingbyfreeairconvection 100% full load burn-in test Fixedswitchingfrequencyat77KHz 2 years warranty |
| MODEL | btb-12-5 | btb-12-12 | btb-12-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V |
| RATED CURRENT | 2A | 1A | 0.4A | |
| CURRENT RANGE | 0-2A | 0-1A | 0-0.4A | |
| RATED POWER | 12W | 12W | 10W | |
| RIPPLE & NOISE (max.) Note.2 | 50mVp-p | 100mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 11.8 ~ 12.2V | 23.8 ~ 24.2V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | + 1.0% | |
| LINE REGULATION | ±0.5% | +-0.5% | +-0.5% | |
| LOAD REGULATION | ±1.0% | +-0.5% | +-0.5% | |
| SETUP, RISE TIME | 200ms 100ms | |||
| HOLD UPTIME(Typ.) | 30ms | |||
| INPUT | VOLTAGE RANGE | 100 ~ 264VAC 120 ~ 370VDC | ||
| FREQUENCY RANGE | 47~63Hz | |||
| EFFICIENCY(Typ.) | 65% | 68% | 72% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.35A/230VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 13A/115VAC 25A/230VAC | |||
| LEAKAGE CURRENT | <0.75mA/ 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||
| Protection type :Hiccup mode, recovers automatically after fault condition is removed. | ||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETYSTANDARDS | UL1012, TUV EN60950-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC 0/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, 0/P-FG:100M Ohms / 500VDC / 25../ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5, EN55024, light industry level, criteria A | |||
| OTHERS | MTBF | 522.1K hrs min. MIL-HDBK-217F (25) °C | ||
| DIMENSION | 75*27*40mm (L*W*H) | |||
| PACKING | 0.065Kg;50pcs/3.3Kg/0.9CUFT | |||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
Product Applications
Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
Electrical filed series: TV,VCRS,Radio ect.
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
